Cassava flour production equipment

Cassava flour widely use in food industry, which can mix with wheat flour to make bread to make a better taste. There are two different technologies of cassava flour production,we mainly introduce the different cassava flour production equipment.
Old technology is dry technology, using cassava to make chips firstly. And then dry the chips and mill the chips into flour. This technology has the defect that not pure, and bad quality;Newest technology is the wet technology. The processing of cassava roots in cassava flour production equipment involves peeling, washing, grating, dewatering, sifting, drying, milling, screening, packaging and storage etc.

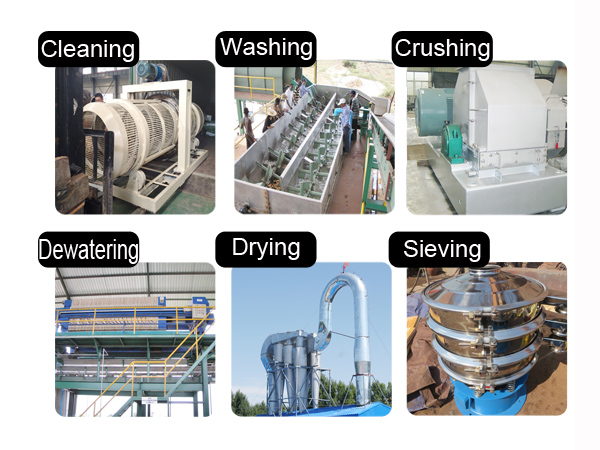

cassava flour production equipment flow chart

Below is the main cassava flour production equipment introduction:
1.Cassava peeling and washing machine, after dry sieve to remove the dirt on the appearance, Paddle washing with clean water is required to remove soil particles and dirt which would meet the quality of the final cassava flour.

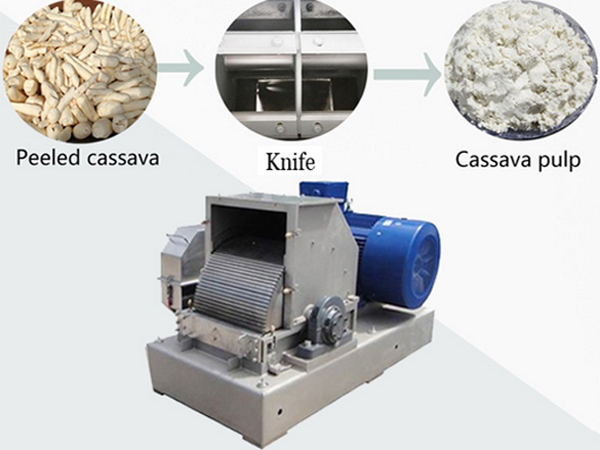

2.Rasper- we match cutting machine and rasper to ensure the fineness of final cassava flour.
3.Dewatering process , normally, it needs filter and plate press,Pressing is use to remove the starch milk inside of the cassava pulp. And then get a dewatered cake, the screw conveying machine will break the cake and make it into mesh for drying section
4.Drying section: we match the flash dryer, which can dry the high quality cassava flour in 2 seconds, To get more dry and high quality cassava flour.
5.Screening and Packaging - Dried cassava flour are milled in a fine mill to a fine and uniform particle size.. Flour is screened using a motorized flour sifter fitter with a 250µm screen. This removes fiber and improves the smoothness of the flour. Finally packaged by packaging machine or manual work.

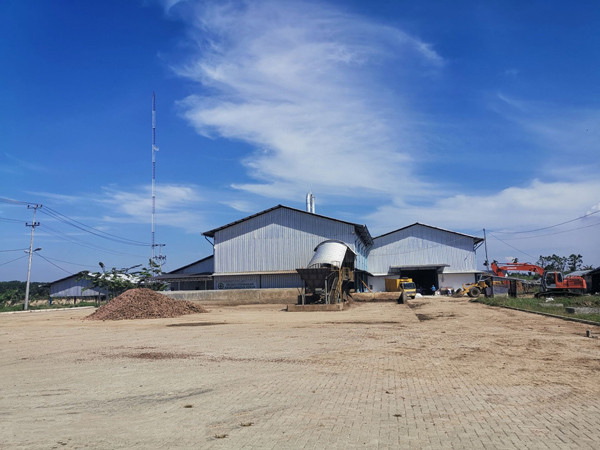

cassava flour production equipment project case

The detail function of each cassava flour production equipment can be shared with you if you intend to set up a cassava flour plant. And our professional engineers will give you a proposal according to your demand for cassava flour production equipment.
